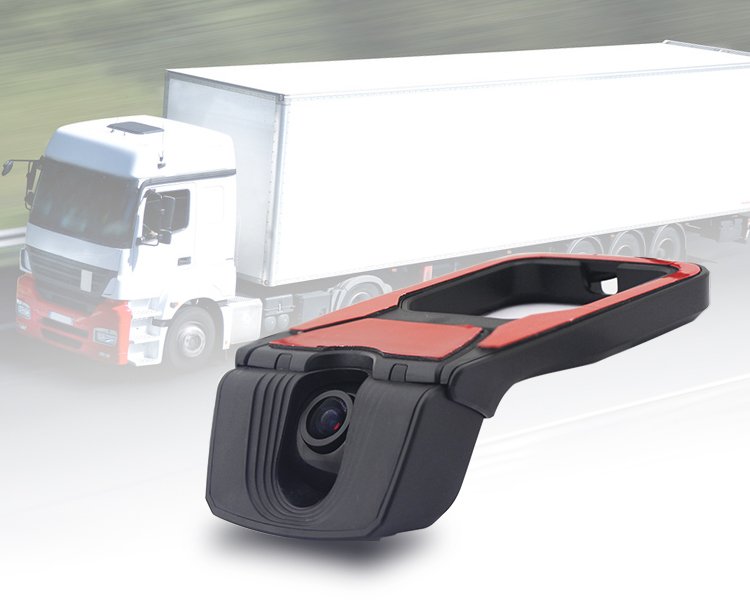

1080P HD 12V Vehicle Front View Camera
Aotop Front View Camera features 1080P HD resolution and WDR image processing technology for clear and stable image results day or night, or in poor visibility conditions. It can be used in conjunction with the ADAS smart mirror system to realize the forward collision warning function, thus improving driving safety!
Features
- AHD 1080P Resolution
- 120° Wide Angle
- Built-in Light Sensor (AUTO Night Vision)
- Optional PAL & NTSC TV System
- Wide Dynamic Range Technology
- Aviation 4PIN Female Connector
1080P HD 12V Vehicle Front View Camera (CH307FE):
| Sensor |
SONY newest CMOS sensor, 1/2.8 inch, 2.9μm, Support WDR/HDR, 3D DNR |
| Resolution | 1080P |
| Material of lens | 4G+1IR |
| Aperture | F2.0 |
| Focal length | 3.3mm |
| Chart size | 1/3 Inch |
| TV System | PAL or NTSC (Optional) |
| Waterproof level | Inside mounting, Non-waterproof |
| Viewing angle | 105°(H)/120°(D) |
| Signal | AHD |
| Operating temperature | -10℃~+60℃ |
| Storage temperature | -20℃~+70℃ |
| Adjustment view angle | Up and down 50° |
| Certification | CE, E-Mark, RoHS |
Reasons To Recommend This Front View Camera

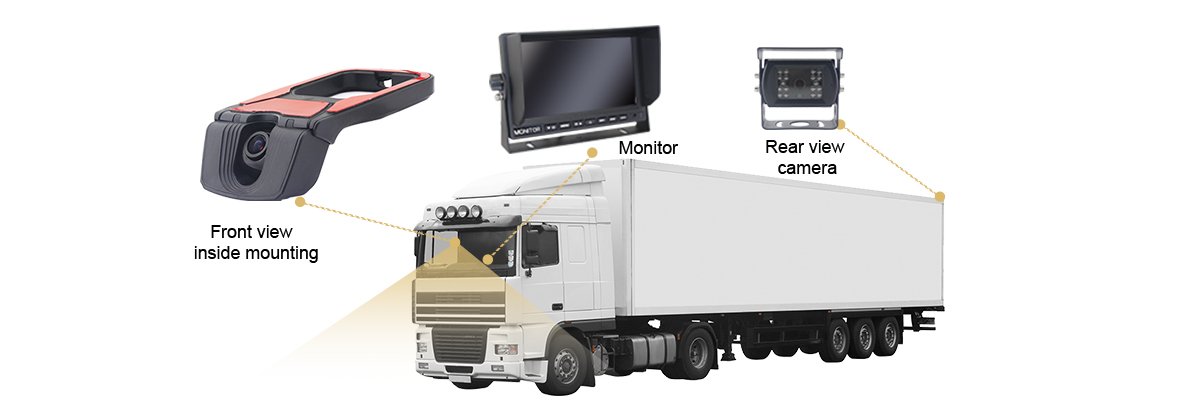

● [CH307FE] Front Cameras + [AC-301] Rear Camera + [CM-709HQ2] Car Monitor / More Car Monitor >>
If your truck is already equipped with reverse camera system and the monitor supports DVR recording function, but you want to extend the front driving recording function, [CH307FE] front view camera will be the ideal solution. It captures wide front view and records the footage directly onto the monitor, enhancing the vehicle safety monitoring system, and in the event of an accident, it provides critical video evidence to help improve the safety and reliability of driving.
High Definition night vision, turns on automatically when surroundings get darker.
● 120° Wide Angle
● SONY CCD Image Sensor
● Built-In High Definition Night Vision

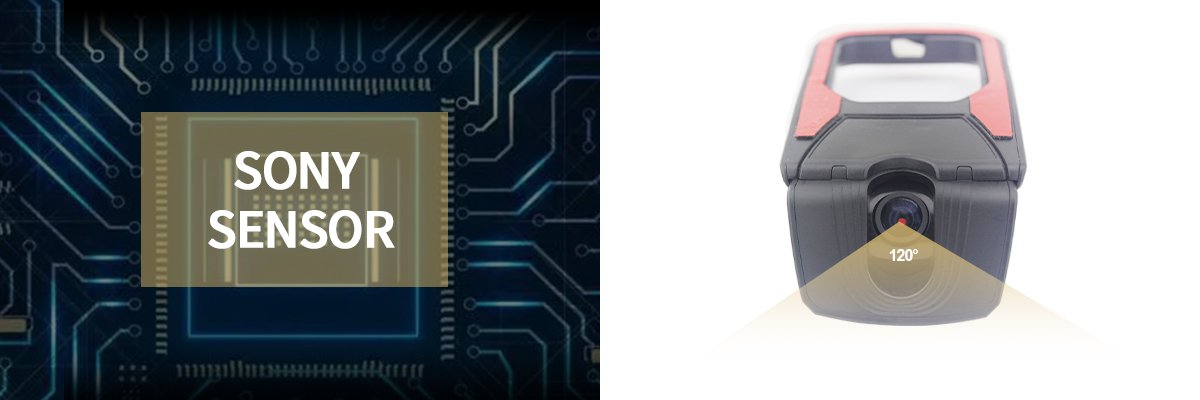

Built-in SONY CCD image processor, this front view camera outputs images in 1080P HD resolution, ensuring clear and detailed video output. 120° wide angle lens extends the field of view in front of you, providing the monitor with comprehensive feedback on road conditions in real time. When encountering low light conditions at night, built-in night vision function will automatically activate to capture and record clear video of nighttime driving, providing high quality visual to support nighttime driving.
camera uses WDR technology to optimise image quality mainly for scenes with high contrasting light.
● 12V Working Voltage
● Optional PAL / NTSC TV System
● Wide Dynamic Range Technology

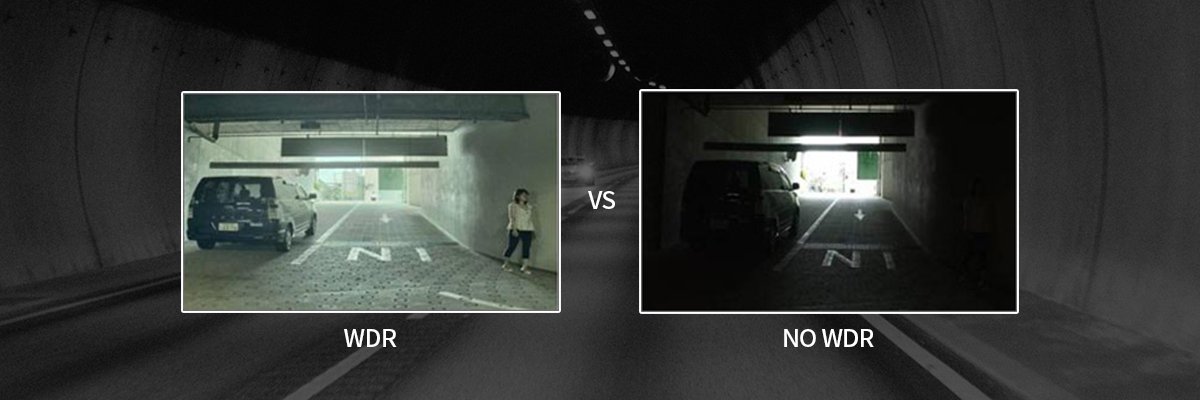

Camera with WDR technology, which can optimize the video recording under high contrast light environment, as shown in the picture, WDR activation state in the underground parking lot can significantly improve the image quality, making the details of the originally dim place become clearly visible.
As a leading car camera supplier in China, our full range of cameras are equipped with HD night vision function.
● HD Night Vision Performance

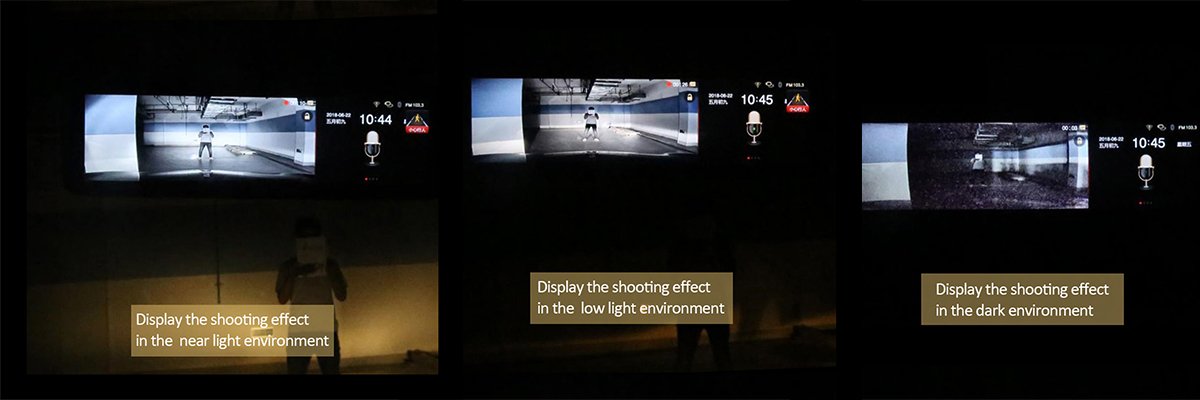

Camera has excellent night vision capabilities, providing drivers with clear visual support in wide range of lighting conditions, from complete darkness low light to near light. In simulated underground garage environment, its night vision technology ensures image quality even when there is virtually no light source, allowing drivers to maintain a clear view of the road ahead in the dimmest of environments. In low light conditions, the camera is also able to adjust its brightness to clearly show road conditions. Even when illuminated by near light source, it effectively balances contrast and suppresses overexposure to ensure stable and clear image, increasing the safety of night driving.
