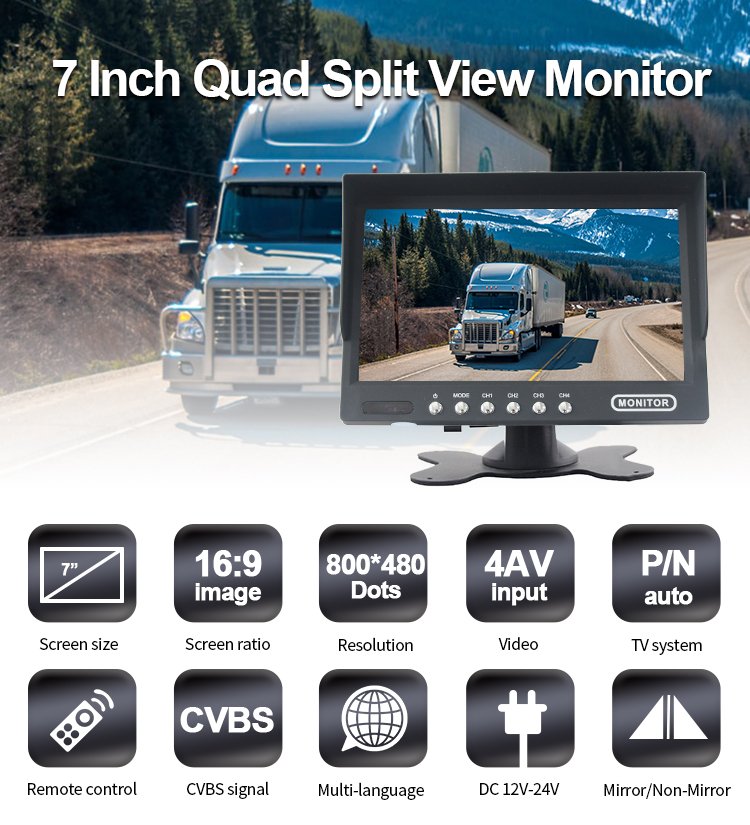

7 Inch 4CH Quad View LCD Monitor For Truck
CM-700MQ 7 inch car monitor supports 4CH AV Signal Input, connect 4 camera, enabling driver of large vehicle to see their surrounding clearly, significantly reducing the risk of scratched & accidents caused by blind spots while driving. The monitor provides clear video surveillance, easy operation, meeting the need of customer who demand high quality video monitoring, making it ideal for improving safety on the road.
Features
- With Sunshade Cover & Butterfly Bracket
- 800*RGB*480 Resolution (LCD Digital Screen)
- 4CH x CVBS Cameras Video Signal Input
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- Full Display & 2/3/4 Split View Mode
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaptation PAL / NTSC System
7 Inch 4CH Quad View LCD Monitor For Truck (CM-700MQ):
| Screen Type/Size | 7 Inch TFT LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 800*480 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Video Input | Support 4CH CVBS Standard Definition Video Signal Input |
| Audio Input | 1CH Camera Audio Input (Available Speaker) |
| OSD Menu |
Image Setting, Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Split View Mode | Single/Double/Triple/Quad View Image Display |
| Trigger | 4CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |
| OEM&ODM Customization | Bracket/LOGO Plate & Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
Trucks All-round 4CH In-Vehicle Camera Monitor Solution
● [CM-700MQ] Car Monitor + 2pcs [AC-301] Rear Cameras + 2pcs [AC-389] Side Cameras / More Car Camera >>
[CM-700MQ] car monitor combines 2pcs [AC-301] & 2pcs [AC-389] cameras to provide all-round surveillance system that offers truck drivers 360° all-round view, effectively eliminating blind spots. This system covers not only the front and rear view of the truck, but also the left and right sides, ensuring safety in all directions.
[AC-301] front camera captures an wide angle view of the road ahead, helping the driver to recognise and respond to obstacles ahead in a timely manner. The rear [AC-301] camera gives drivers clear view of the distance and environment behind the vehicle when reversing, reducing the risk of collision. The side [AC-389] cameras are located on each side of the truck, providing the driver with comprehensive side view in complex traffic, ensuring safety when changing lanes and making turns.
As a leading manufacturer of car monitor in China, This 4CH monitor are equipped with the best screens in the industry.
Each machine will be 100% aging tested before shipment!

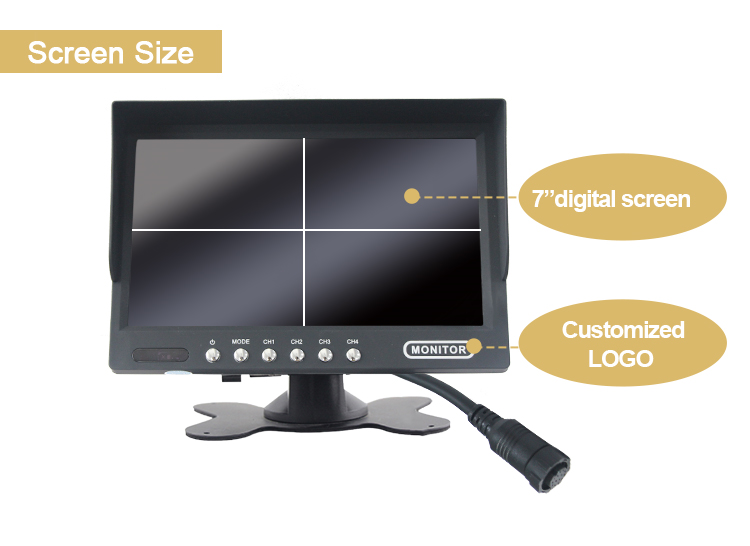

● 7 Inch 800*RGB*480 TFT LCD Screen (16:9 Screen Ratio)
● LOGO Plate Support Commercial OEM & ODM Customization
● Available Speaker (1CH Audio Signal Input )
Monitor features 7 inch LCD digital screen that delivers, and the 16:9 widescreen ratio delivers excellent visual effects in both full-screen and split-screen displays.

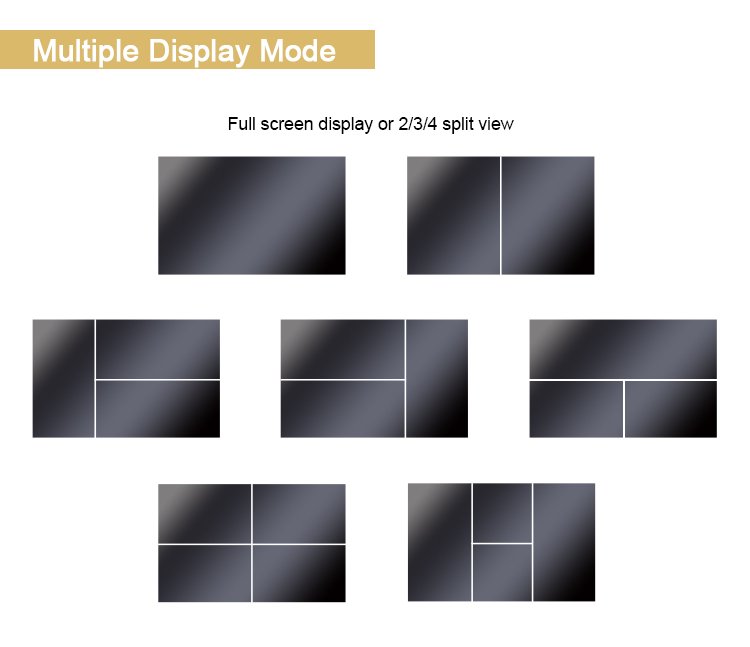

Multiple Split Screen Modes
● Display Mode Supports Single View, Dual Views, Triplex Views, Quad Views, "H" View, "T" View And Other Views
Screen supports 2/3/4 split-screen display mode, which allows users to switch views flexibly according to monitoring needs, simultaneous view multiple camera images.

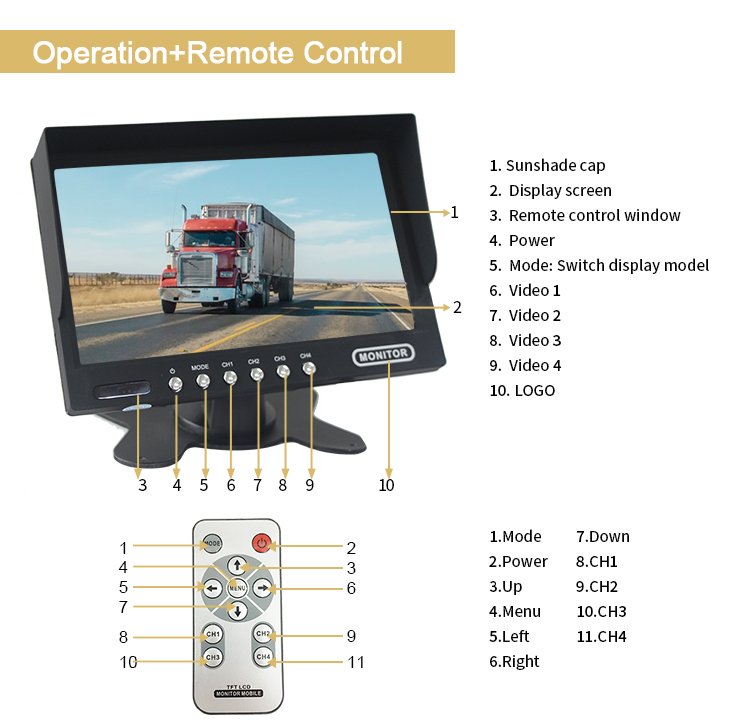

Monitor & Remote Control Buttons Full Function Introduction
- Sunshade Cap
- Display Screen
- Remote Control Window
- Power
- Mode: Switch Display Model
- Video 1
- Video 2
- Video 3
- Video 4
- LOGO
- Mode
- Power
- Up
- Menu
- Left
- Right
- Down
- CH1
- CH2
- CH3
- CH4

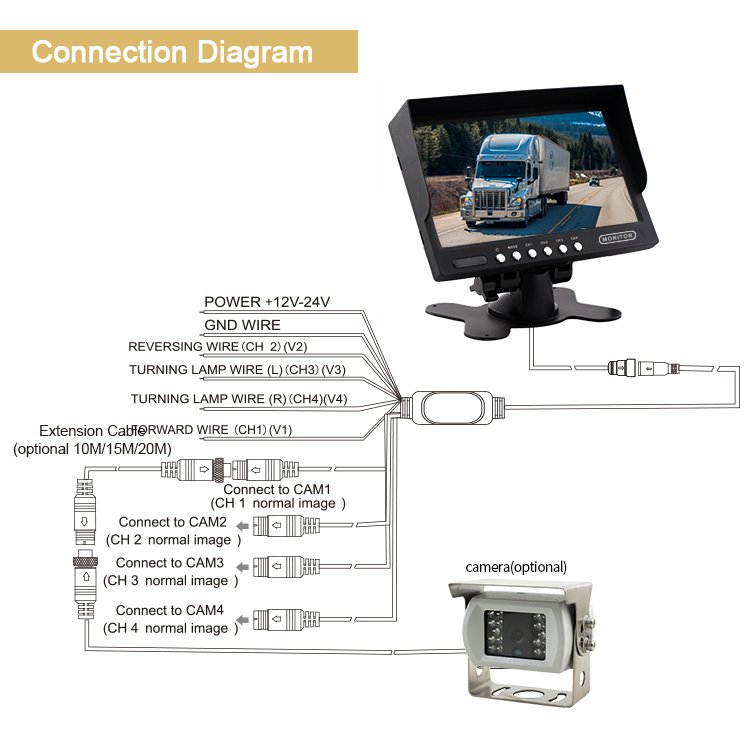

camera gets its power from the monitor.
they are connected to each other by an extension cable.
● 4 trigger lines input, trigger line definition, trigger delay and priority can be adjusted freely
Monitor’s power cable 4 trigger inputs that automatically switch to the appropriate camera view, depending on the driver’s specific driving action (e.g. reverse gear switches to reverse view, left turn signal switches to left camera view).
