7 Inch Waterproof Quad View Car LCD Monitor
CM-708WMQ monitor with IP68 waterproof performance supports 4CH CVBS video input, enables it to provides comprehensive 360° real-time monitoring of large vehicle. 800*480 resolution quad view display clearly shows situation around the vehicle, significantly reducing driver’s visual blind spot, effectively reducing potential safety hazards. Support screen mirroring function and multi-language options to adapt to the needs of users in different regions of the world.
Main Features
- With Sunshade Cover & U-Bracket & Touch Button
- IP68 Waterproof & Dustproof, Aluminium Alloy Material Shell
- 800*RGB*480 LCD Digital Screen, 16:9 Ratio
- 4CH x CVBS Cameras Video Signal Input
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- Full Display & 2/3/4 Split View Mode
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaption PAL / NTSC System
| Specifications | ||
|---|---|---|
| Waterproof Rating | IP68 | |
| Screen Type/Size | 7 Inch TFT LCD Screen | |
| Aspect Ratio | 16:9 | |
| Resolution | 800*480 | |
| Brightness | 500cd/㎡ | |
| Contrast | 500:1 | |
| Video Input | Support 4CH CVBS Standard Definition Video Signal Input | |
| OSD Menu |
Image Setting, Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
|
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default | |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default | |
| Split View Mode | Single/Double/Triple/Quad View Image Display | |
| Trigger | 4CH Trigger Lines | |
| System | AUTO Adaptation PAL / NTSC | |
| Power Supply | DC 12-24V | |
| Currents | 12V/<1A | |
| Operating Power | <10W | |
| Boot Time | About 2~3 sec. | |
| Connection Plug (Connector) | Waterproof Aviation Female Connector | |
| Vibration Rating | 4G | |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) | |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) | |
| OEM&ODM Customization | Bracket/Label/Graphic Carton | |
| Warranty | 2 Years | |
| Certification | E-Mark、E24、CE、FCC、UKCA | |
Harvester Agricultural Machinery Quad View Monitoring Solution
● [CM-708WMQ] Car Monitor + [AC-302] Car Cameras / More Car Camera >>

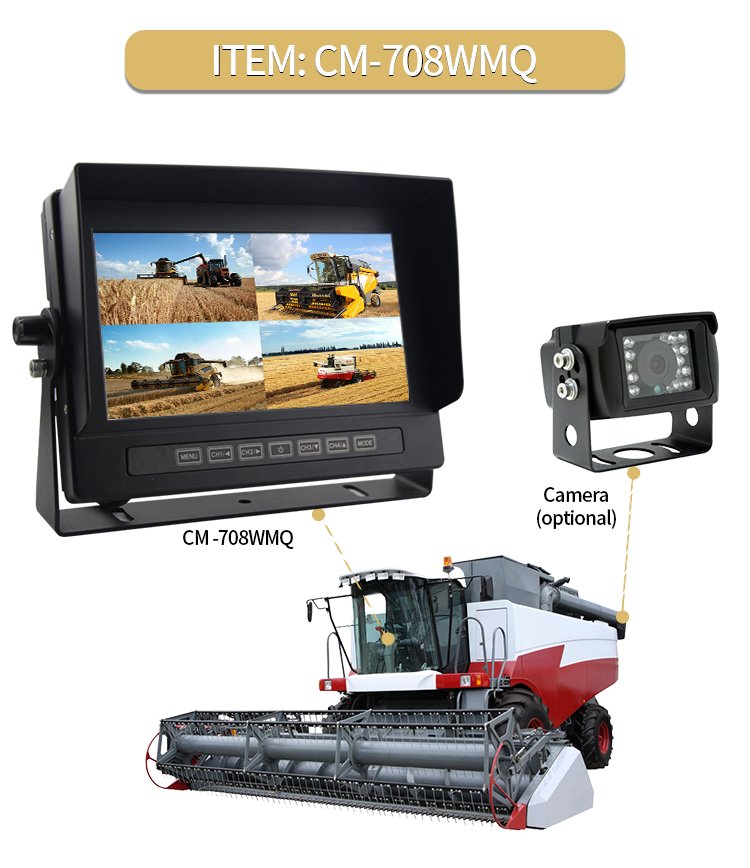

Designed for agricultural harvesters, [CM-708WMQ] monitor’s quad view surveillance solutions provides full 360° view of the operation with integrated front, rear and side cameras. It allows the operator to monitor every corner of the harvesting process in all directions. The front view camera clearly shows the harvesting area and transmits the operation in real time; The side view camera ensures that there are no blind spots on both sides to prevent accidental collisions; And the rear view camera provides a clear view of the reversing and rear operation, reducing the safety risks in the operation. Quad View simultaneous display function allows the operator to easily control the surrounding situation, and the IP68 waterproof design of this total solution ensures stable operation in all weather conditions, adapting to the challenges of open-air operation. This Solutions not only improves the safety of agricultural operations, but also enhances the overall operational efficiency by optimising field of view management.
As a manufacturer with 19 years of experience in in-vehicle displays, we choose screens that are among the top in the industry.
Each machine will be 100% screen aging tested before shipment!

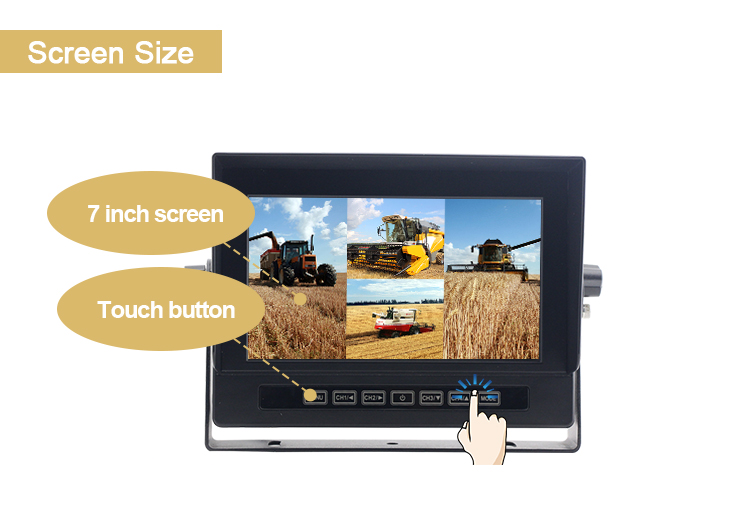

● 7 Inch 800*480 LCD Digital Screen (16:9 Screen Ratio)

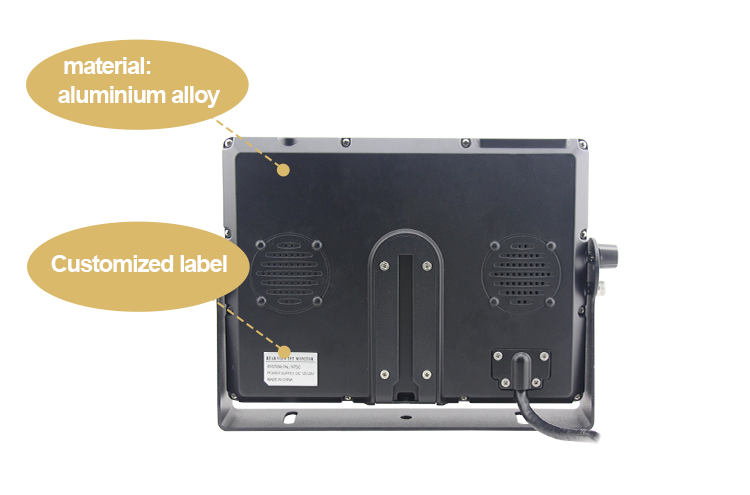

● Aluminium Alloy Material Shell
Monitor adopts an industrial-grade LCD digital screen, which can provide clear & colourful image, and drivers get accurate visual information when monitoring, improving operational efficiency and safety.
With good durability and stability, its casing is made of hardened aluminium alloy with excellent sealing and meets IP68 waterproof standard, providing reliable monitoring support for vehicles operating in the open air.

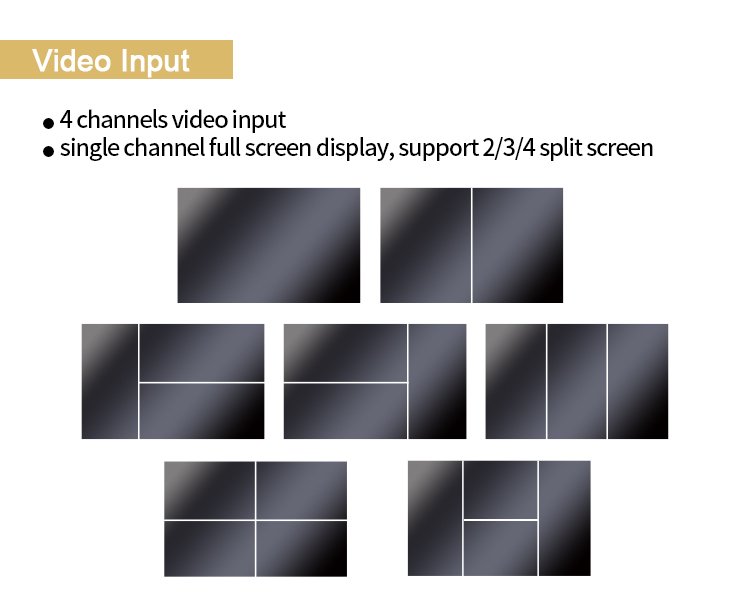

Multiple Split Screen Modes
● Display Mode Supports Single View, Dual Views, Triplex Views, Quad Views, "H" View, "T" View And Other Views
Monitor is capable of accessing 4CH video signals and offers variety of split-screen options. Users can view a single video source in full screen, or divide the screen into 2, 3 or 4 frames according to monitoring needs, and monitor multiple viewpoints at the same time on one screen, providing comprehensive view of the operation.

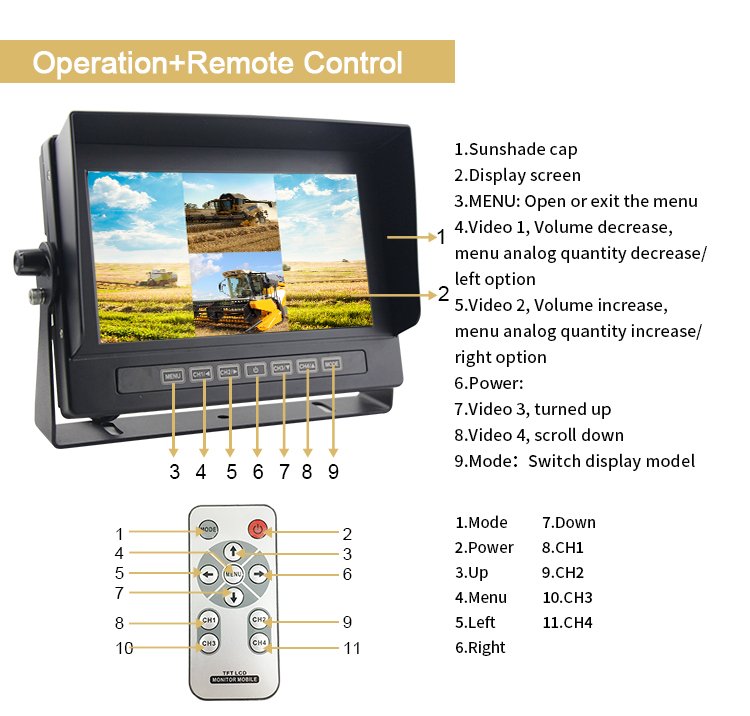

Monitor & Remote Control Buttons Full Function Introduction
- Sunshade Cap
- Display Screen
- MENU: Open or Exit The Menu
- Video 1, Volume Decrease, Menu Analog Quantity Decrease / Left Option
- Video 2, Volume Increase, Menu Analog Quantity Increase/ Right Option
- Power
- Video 3, Turned Up
- Video 4, Scroll Down
- Mode: Switch Display Model
- Mode
- Power
- Up
- Menu
- Left
- Right
- Down
- CH1
- CH2
- CH3
- CH4
camera gets its power from the monitor.
they are connected to each other by an extension cable.
● 4 trigger lines input, trigger line definition, trigger delay and priority can be adjusted freely

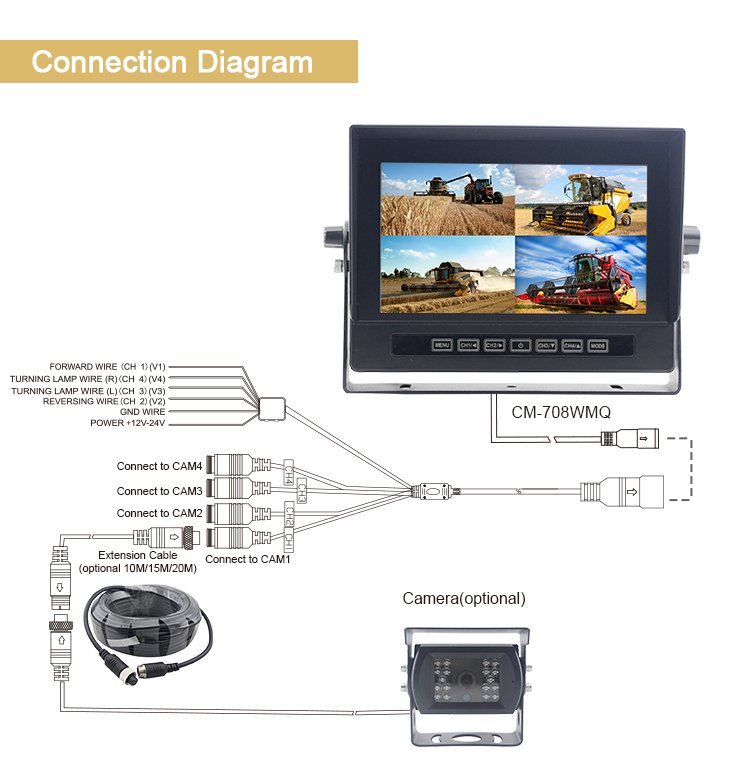

Monitor can be connected to 4 cameras plugged into the monitor’s CAM1 to CAM4 ports to monitor the front, rear and side views of the vehicle. 4 trigger lines receive inputs for steering signals (CH3/CH4) and reversing signals (CH2), enabling priority view switching to optimise field-of-view transitions during driving.
