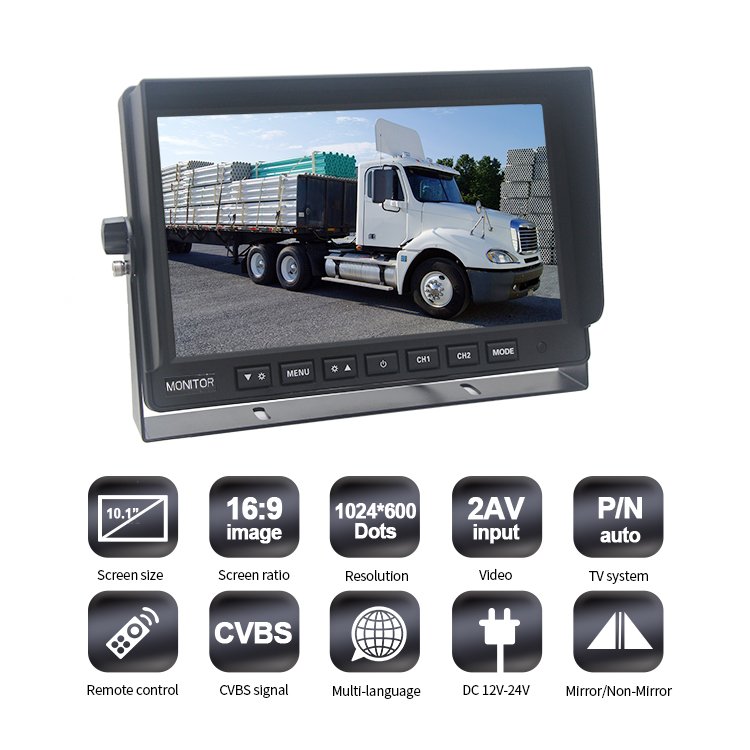

10.1" 2CH AV Input Truck Rear View Monitor
10.1 inch digital LCD truck rear view monitor supports 2 ways CVBS video signal inputs to effectively monitor and display the dynamics behind the vehicle. The high definition IPS screen ensures image detail and color accuracy, multi-language switching enable this monitor to provide consistent user experience in different countries.
Features
- Sunshade Cover & U-Bracket
- 1024*RGB*600 Resolution (IPS LCD Digital Screen)
- 2CH x CVBS Cameras Video Signal Input
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaptation PAL / NTSC System
10.1 Inch 2CH AV Input Truck Rear View Monitor (CM-1010M):
| Screen Ratio | 16:9 |
| Back Light Luminance | LED, Brightness 200cd/㎡ |
| Contrast | 450:1 |
| Resolution | 1024*RGB*600 |
| Compatible system | PAL & NTSC (automatically) |
| OSD control |
Brightness, Contrast, color, Volume, mode, turnover, language |
| View angle |
Hor. L(45°) R(45°) Ver. UP(35°) DOWN(15°) |
| Shockproof range | 4G |
| Power | 12-24V DC |
| Power consumption | ＜7W |
| Max current | ＜550mA |
| Storage temperature | -20℃〜+70℃ |
| Working temperature | -10℃〜+60℃ |
| AV Inputs | 2 AV input |
| Number of Trigger and display | 1 triggers |
| Accessories |
Remote control, Power supply cable, User manual, Bracket, Sunshade, Wrench |

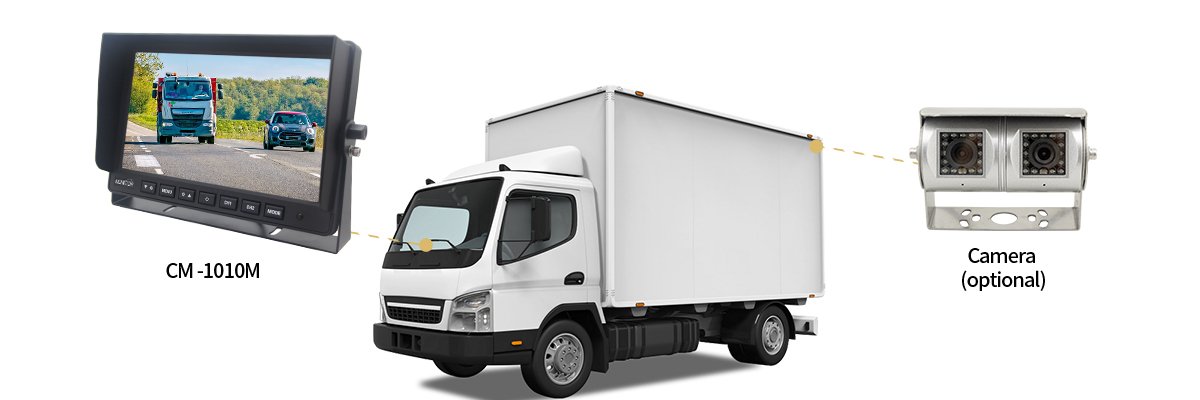

Dual Lens Backup Camera With 10.1 Inch Digital Monitor For Truck Minivan
● [CM-1010M] Car Monitor + [AC-330D] Cameras / More Car Rear View Camera >>
[CM-1010M] vision solution mainly used to improve the safety of reversing minivans. It displays rear view through the monitor, helping the driver to clearly see obstacles and pedestrians behind the vehicle while backing up, thus avoiding possible collisions or accidents.
As a leading manufacturer of car monitor in China, our monitors are equipped with the best screens in the industry.
Each machine will be 100% aging tested before shipment!
● 10.1 Inch 1024*RGB*600 LCD Digital Screen (16:9 Screen Ratio)
● Big Button Design - Easy Operation
● LOGO Plate Support Commercial OEM & ODM Customization
Monitor features 10.1 inch IPS display, it wide viewing angle and accurate colour reproduction to ensure that drivers receive consistent, clear visual information when viewing from different viewpoints, providing ideal visual support for safety monitoring during driving.

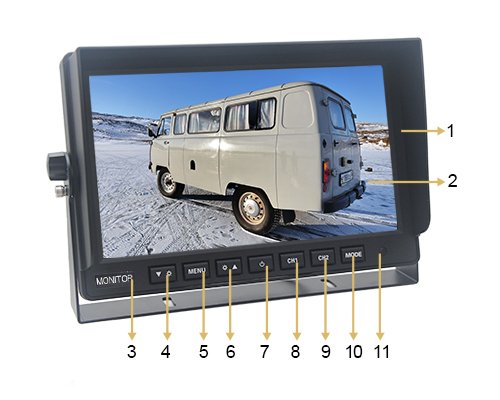

Monitor & Remote Control Buttons Full Function Introduction
- Sunshade Cap
- Display Screen
- Metal LOGO Plate
- Volume Decrease, Menu Analog Quantity Decrease
- Menu
- Volume Increase, Menu Analog Quantity Increase
- Power
- Video 1
- Video 2
- MODE: Switch Display Model
- Remote Control Window

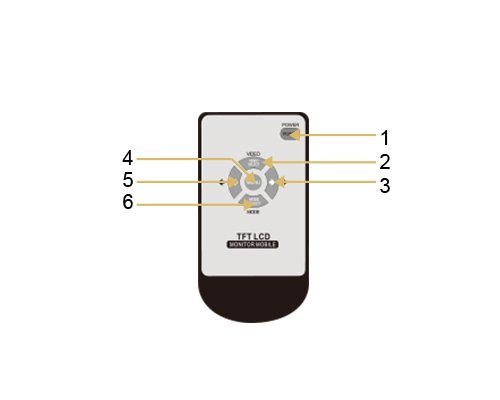

- Power
- Switch Over
- “+”
- Menu
- “-“
- Mode Select
