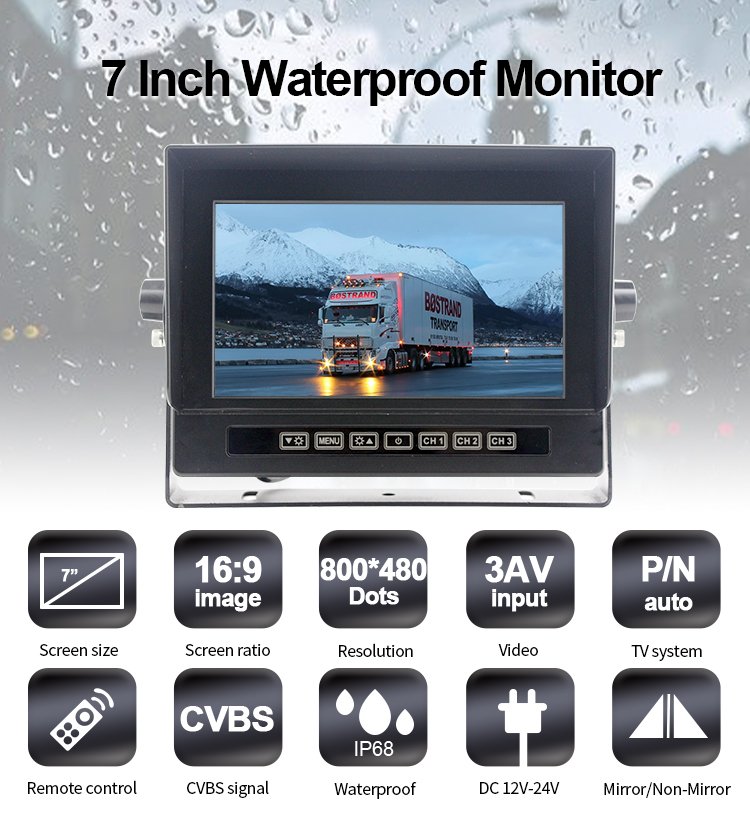

IP68 Waterproof 7 Inch Car Rear View Monitor
CM-708W Monitor is IP68 rated waterproof, 3CH CVBS camera video signal inputs, and provides wide angle, standard definition TFT digital display to ensure that drivers of open-air working vehicles can clearly monitor their vehicle’s perimeter in all weather conditions. Reduces the risk of accidents during driving, support multi-language setting.
Main Features
- With Sunshade Cover & U-Bracket & Touch Button
- IP68 Waterproof & Dustproof, Aluminium Alloy Material Shell
- 800*480 TFT LCD Digital Screen, 16:9 Ratio
- 3CH x CVBS Cameras Video Signal Input
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaption PAL / NTSC TV System
| Specifications | ||
|---|---|---|
| Waterproof Rating | IP68 | |
| Screen Type & Size | 7 Inch TFT LCD Digital Screen | |
| Aspect Ratio | 16:9 | |
| Resolution | 800*480 | |
| Brightness | 400cd/㎡ | |
| Contrast | 500:1 | |
| Video Input | Support 3CH CVBS Standard Definition Video Signal Input | |
| OSD Menu |
Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
|
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default | |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default | |
| System | AUTO Adaptation PAL / NTSC | |
| Power Supply | DC 12-24V | |
| Currents | 12V/<1A | |
| Operating Power | <10W | |
| Boot Time | About 2 sec. | |
| Connection Plug (Connector) | Waterproof Aviation Female Connector | |
| Vibration Rating | 4G | |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) | |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) | |
| OEM&ODM Customization | Bracket/LOGO Plate & Label/Graphic Carton | |
| Warranty | 2 Years | |
| Certification | E-Mark、E24、CE、FCC、UKCA | |

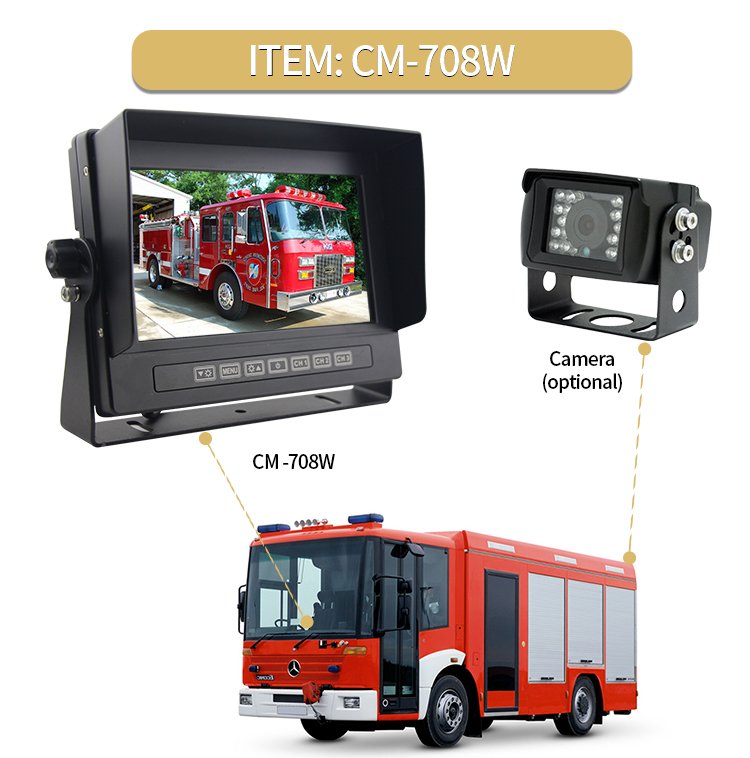

Waterproof Rear View Camera Monitoring Safety Solution For Fire Trucks
● [CM-708W] Car Monitor + [AC-302] Rear View Cameras / More Car Rear View Camera >>
The solution provides regular rear view blind spot monitoring and the camera monitor is waterproof for wet working environments.
As a manufacturer with 19 years of experience in in-vehicle displays, we choose screens that are among the top in the industry.
Each machine will be 100% screen aging tested before shipment!

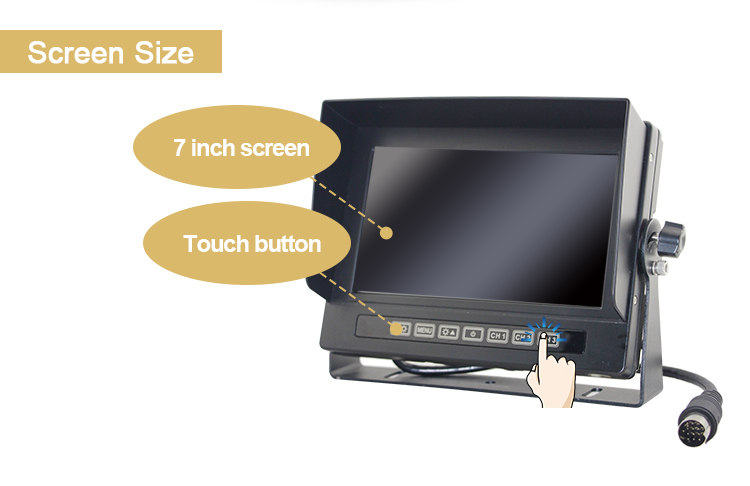

● 7 Inch 800*480 TFT Digital Screen (16:9 Screen Ratio)
● Touch Button - Easy To Operation

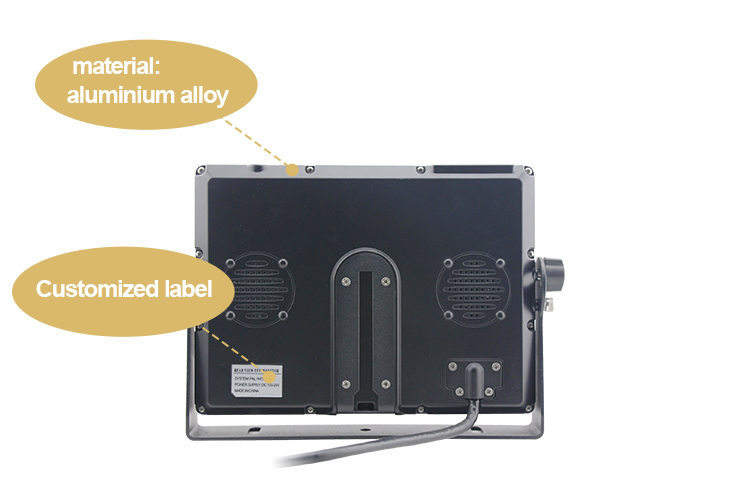

● Aluminium Alloy Material Shell
Featuring 7 inch TFT digital screen with a resolution of 800*480, this monitor is guaranteed to deliver the clear, colourful visuals required for vehicle monitoring tasks. The design of the monitor emphasises durability and reliability. The casing is constructed from tough aluminium alloy and is well sealed to IP68 waterproof rating. Ensures continuous and stable operation of the monitor in both rain (wet) and dusty road conditions, providing long-lasting monitoring support for open-air work vehicles.

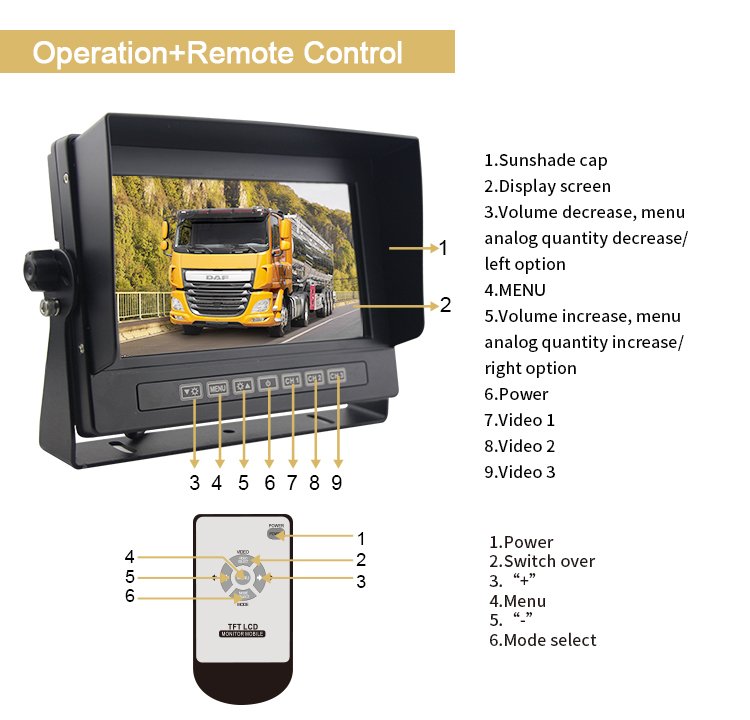

Monitor & Remote Control Buttons Full Function Introduction
- Sunshade Cap
- Display Screen
- Volume Decrease, Menu Analog Quantity Decrease / Left Option
- MENU
- Volume Increase,Menu Analog Quantity Increase / Right Option
- Power
- Video 1
- Video 2
- Video 3
- Power
- Switch Over
- “+”
- Menu
- “-“
- Mode Select

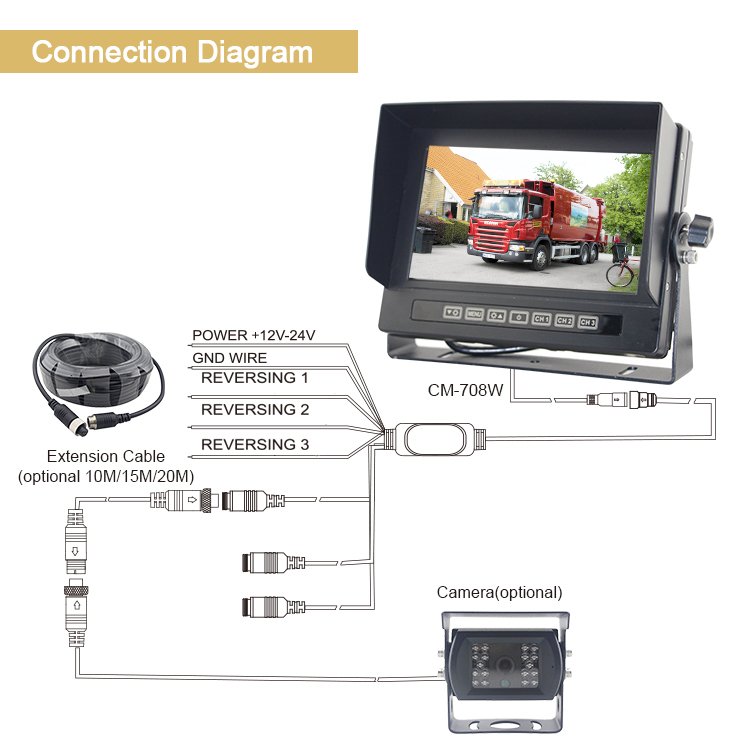

camera gets its power from the monitor.
they are connected to each other by an extension cable.
● 3 trigger lines input, trigger line definition, trigger delay and priority can be adjusted freely
Monitor has 3CH video input ports labelled “Reversing 1”, “Reversing 2” and “Reversing 3” and is capable of connecting up to 3 cameras which can be mounted on the front, rear or side of the vehicle to provide full view. These cameras can be mounted at the front, rear or side of the vehicle to provide comprehensive view. Standardised interfaces and optional extension cables (10m, 15m or 20m) ensure flexibility of connection and ease of installation. The camera (if fitted) is selected via the monitor’s channel switching buttons, enabling the driver to easily switch between different camera views, which not only facilitates reversing manoeuvres, but also enhances safety monitoring during driving.
