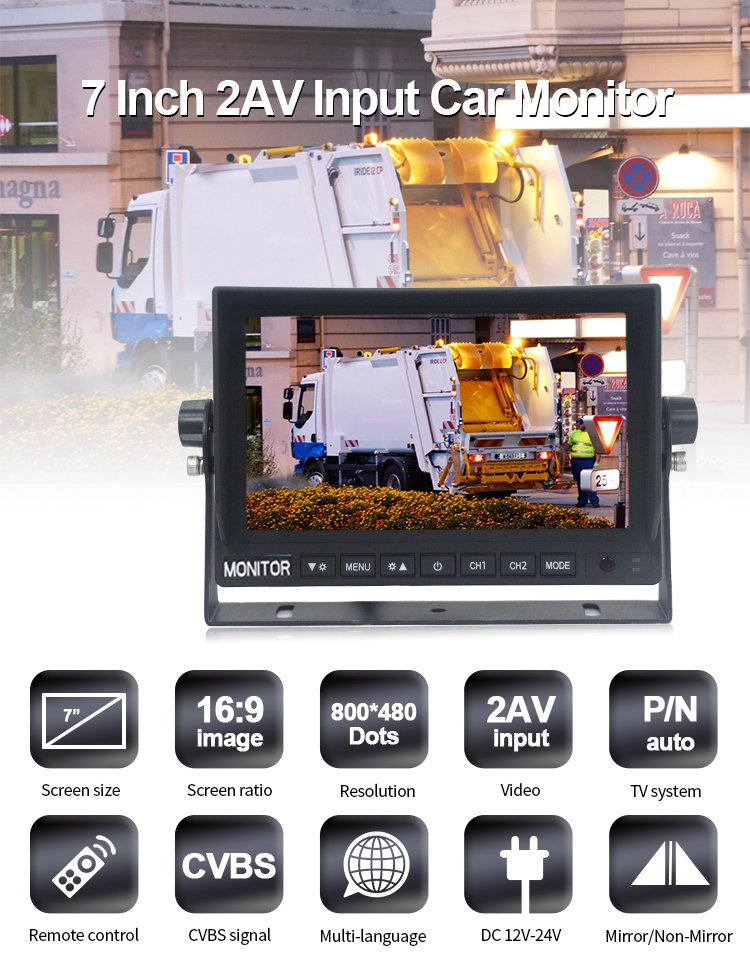

7 Inch LCD Digital Car Rear View Monitor
CM-709M Monitor’s 7 inch LCD display with 800*480 resolution and is capable of accessing 2 cameras. It allows the driver to monitor the rear and side of the vehicle at the same time, reducing the risk of accidents caused by blind spots. This monitor provides clear visual information for accurate distance judgement and safe manoeuvring, making it an indispensable safety aid for driving.
Main Features
- With Sunshade Cover & U-Bracket
- 800*480 Resolution (TFT LCD Digital Screen)
- 2CH x CVBS Cameras Video Signal Input
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaption PAL / NTSC TV System
| Specifications | ||
|---|---|---|
Refuse Collection Vehicle Standard Rear View Safety Monitoring Solutions
● [CM-709M] Car Monitor + [AC-301] Rear View Cameras / More Car Rear View Camera >>
[CM-709M] Reverse Vision Solution helps drivers to fully understand the situation behind the vehicle by providing clear, real-time video feedback, especially when reversing, effectively reducing blind spots and potential collision risks.
As a manufacturer with 19 years of experience in in-vehicle displays, we choose screens that are the best in the industry.
Each machine will be 100% screen aging tested before shipment!

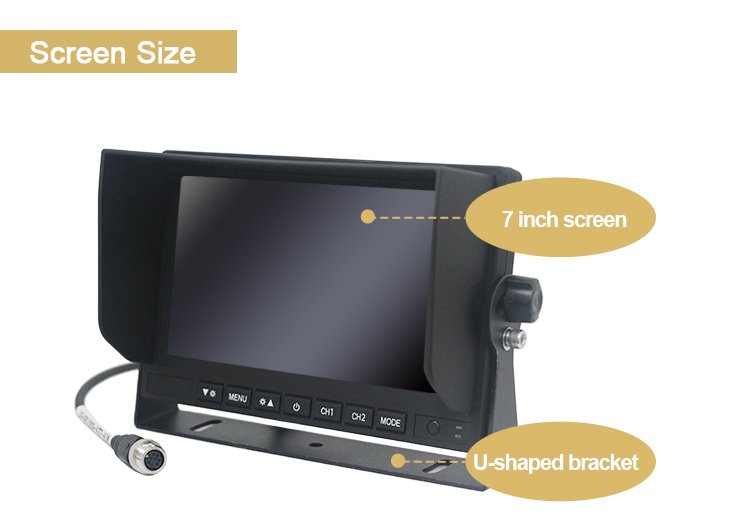

● 7 Inch 800*RGB*480 LCD Digital Screen (16:9 Screen Ratio)

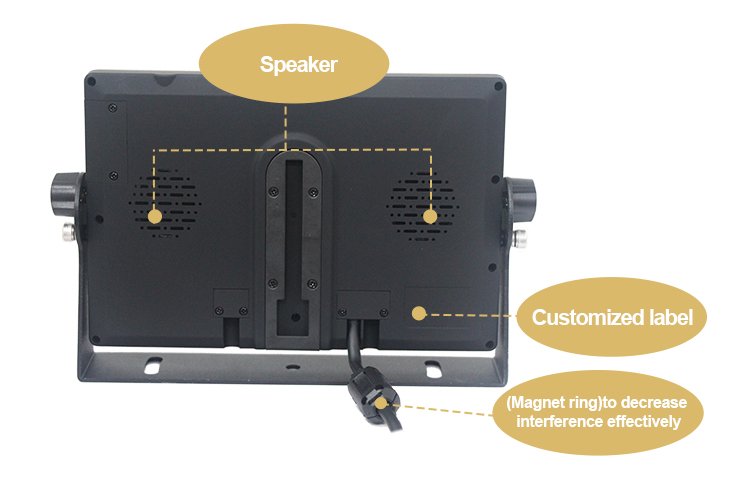

● Available High Quality Speaker (1CH Audio Signal Input)
● Connecting Wire Add Magnet Ring, To Decrease Interference Effectively

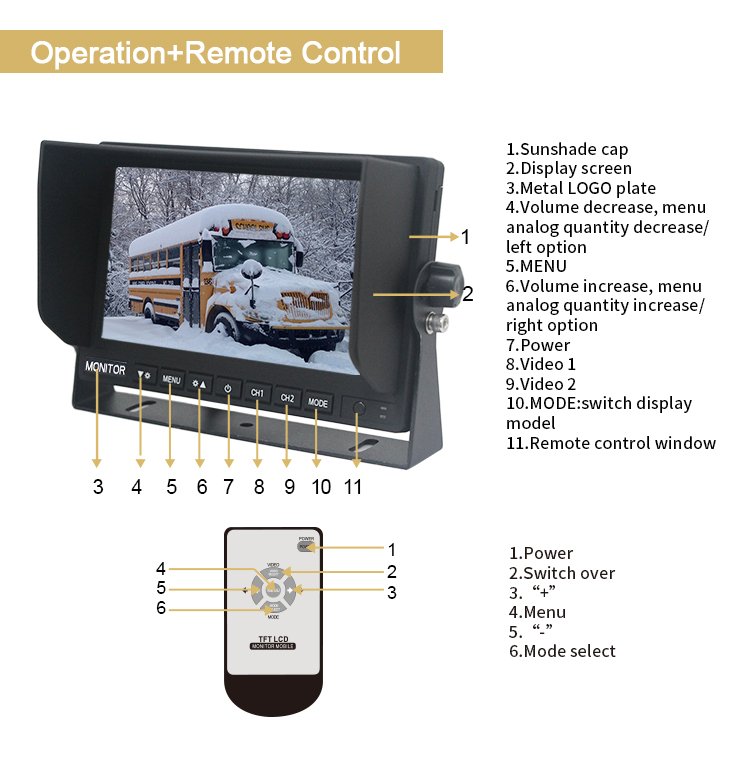

Monitor & Remote Control Buttons Full Function Introduction
- Sunshade Cap
- Display Screen
- Metal LOGO Plate
- Volume Decrease, Menu Analog Quantity Decrease / Left Option
- MENU
- Volume Increase, Menu Analog Quantity Increase / Right Opyion
- Power
- Video 1
- Video 2
- MODE: Switch Display Model
- Remote Control Window
- Power
- Switch Over
- “+”
- Menu
- “-“
- Mode Select
